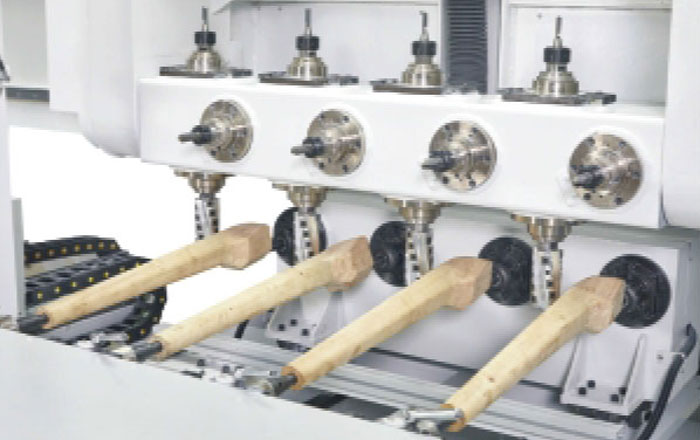

16 End Milling Machine

The workpiece of the four-sided miling, drilling, slotting, drilling, rounding, and so on.

Quantity:

Inquiry

Product Description

Technical Specifications:

Model	16 End Milling Machine
X Maximum Stroke	2200mm
Y Maximum Stroke	1200mm
Z Maximum Stroke	200mm
A Maximum Stroke	±180°
B Maximum Stroke	unrestricted
Maximum workpiece turing radius	130mm
Maximum workpiece length	1200mm
Motor characteristics	Four 5.5KW (ER32) dual head high-speed motors for manual tool changing, with a maximum speed of 12000 revolutions per minute, and four 3.7KW (ER24) motors, with a maximum speed of 18000 revolutions per minute
Operation mode	Dual countertops, alternating work
Electrical characteristics	三相380V 30KW
Air source	6 BAR
Total mechanical weight	About 4500kg
